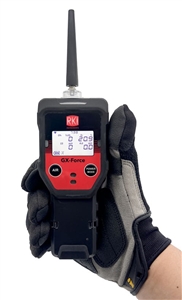

The GX-Force is RKI’s smallest personal 1-4 gas monitor with a strong internal sample pump capable of a 100’ sampling range. Weighing only 9.8 ounces, the GX-Force can monitor the standard confined space gases (LEL combustibles, Oxygen, Carbon Monoxide, and Hydrogen Sulfide). Utilizing the same micro-sensor technology, which are compatible with the GX-3R, GX-3R Pro, 04 Series, and Gaswatch 3 instruments.
With the GX-Force, you have multiple tools in one instrument. Having 2 operating modes, the GX-Force can be used for confined space, safety monitoring in its Normal Operating mode. A Leak Check mode is the solution for leak investigations. In Leak Check Mode, the GX-Force can monitor for combustibles in the ppm range.
The GX-Force operates 30 hours on a Li-ion battery, and has a large LCD display showing all gas readings, battery level, current time and automatically backlights in alarm conditions. Standard alarm types include vibration, visual, and audible alarms, which can be set to latching or non-latching. Controlled by a microprocessor, the GX-Force continuously checks itself for sensor connections, low battery, circuit trouble, low flow, and calibration errors.
Calibration and bump test intervals and reminders are user adjustable and can be set to either go into alarm or to lock the user out of normal measurement mode once a calibration period has expired. Calibration can be done individually or in a group.
- Sampling Method: Internal sample pump, flow rate nominal 0.5 LPM, includes hydrophobic filter
- Suction Flow Rate: Minimum 0.35 L/min (open flow rate)
- Gas Alarm Pattern: Lamp flashing, continuous modulating buzzer sounding, gas concentration display flashing, vibration
- Gas Alarm Reset Operation: Self-resetting or latching
- Fault Alarm/Self-Diagnosis: System, clock, or sensor abnormality; battery voltage drop; calibration failure; pump abnormality; low flow rate
- Fault Alarm Pattern: Lamp flashing, intermittent buzzer sounding, detail display
- Fault Alarm Reset Operation: Self-resetting
- Display: LCD digital (7-segment + 14-segment + icons) with backlight
- Individual Operations: Operational status, clock, battery level, peak reading, pump status, calibration notification
- Sound Pressure: Approx. 90 dB (30 cm)
- Data Logger Function: Maximum storage capacity: 3,600 items Interval: 5 minutes (adjustable)
- Communication Specifications: USB, 2.0 (for data logger) Connector: Type-C
- Power Source: Rechargeable lithium ion battery, USB Type-C power cord
- Continuous Operating Time: Approx. 30 hours (25 °C, fully charged, no alarm, no backlight)
- Operating Ambient Temperature /Humidity Range: -20 °C to +50 °C (no sudden changes), 0 – 95 % RH (no condensation) (-4 °F to +122 °F)
- Approvals: Intrinsically safe construction; IECEx (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga); ATEX (II1G Ex da ia IIC T4 Ga/II1G Ex ia IIC T4 Ga)
- Certifications: ATEX / IECEx, QPS (pending)
- Protection Level: IP67 equivalent
- External Dimensions / Weight: Approx. 2.52 (W) × 6.81 (H) × 1.85 (D) (excluding protrusions) / Approx. 9.87 oz.
- Warranty: Three years material and workmanship
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- 2 Operating modes — Normal and Leak Check
- Internal sample pump with 100′ sample range
- 30 hours of operation (Lithium-ion battery)
- USB Type-C charging & data connection
- Easy to grip lightweight design — 2.5″ W x 6.81″ H x 1.85″ D, 9.87 ounces
- Water and dust resistant design, IP67
- Field replaceable sensors & filters
- Impact resistant body
- Intrinsically safe
- Large LCD Auto-backlit display
- 3 Year warranty
|
|
|
|
|
|
|
