Bundle and save Autel RTK drone with Carlson software!
The EVO II Pro RTK provides a proven, accurate, durable, and user-friendly, FAA Remote ID Compliant Unmanned Aircraft System (UAS) for numerous applications, including the creation of surfaces, point clouds, and orthoimages with Carlson PhotoCapture, as well as feature extraction and CAD plans with Carlson Point Cloud.
Available in packages with both PhotoCapture and Carlson Point Cloud to take your aerial data to finished deliverables, the EVO II Pro offers up to 36 minutes of flight time, high accuracy positioning with its detachable RTK module, a 20MP camera with 1″ sensor, and built-in mission planning for simple setup in the field.

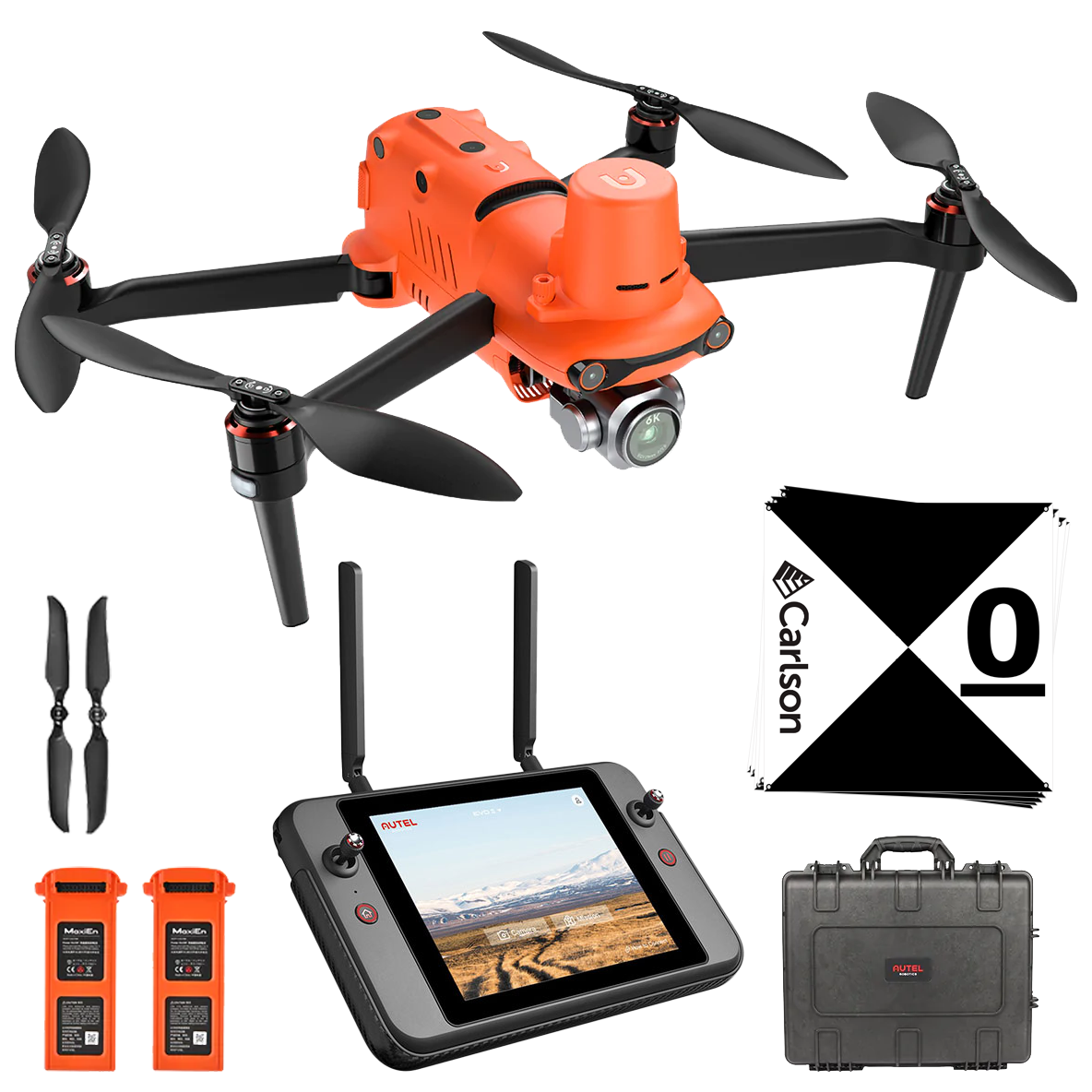

EVO II Pro RTK packages from Carlson include:
- Carlson PhotoCapture Online or Standalone
- Carlson Point Cloud Advanced
- Aircraft with RTK module
- 3 Flight batteries
- Smart Controller with mission planning software
- 10 ground targets
- Chargers and cables
- 32gb SD card
- Controller neck strap
- Rugged hard case
- Spare propeller pair
Create Point Clouds, Orthoimages, TINs, Linework and More with Carlson PhotoCapture
With Carlson PhotoCapture drone photo processing software, you can use the date collected with your EVO II Pro RTK to:
• Quickly generate interactive 3D maps of sites
• Capture highly accurate 3D site data from any camera
• Share site maps with customers – anywhere, anytime!
• Save man-hours in the field
Aircraft Specifications
- Weight (with propeller and battery): 1237g ± 0.5g
- Wheelbase: 397 mm
- Maximum Service Ceiling Altitude: 6000 m
- Max Ascent Speed: 5 m/s (automatic flight); 8 m/s (manual control)
- Max Descent Speed: 4 m/s
- Max Horizontal Flight Speed: 72 km/h
- Max Tilt Angle: 33°
- Max Angular Velocity: 120°/s
- Max Flight Time: 36 min
- Operating Temperature Range: -10℃ ~ 40℃
- Maximum Resistance to Wind: Level 8 (39-46mph/62-74kph)
- Operating Frequency: non-Japan：2.400 GHz – 2.4835 GHz；5.725 – 5.850 GHz
Japan：2.400 GHz – 2.4835 GHz；5.650 – 5.755 GHz
Transmission power 2.4GHz
FCC/ISED：≤27dBm
SRRC/CE/MIC/RCM：≤20dBm
5.8G (non-Japan) ; 5.7G (non-Japan)
FCC/ISED/SRRC/MIC：≤27dBm
CE/ RCM：≤14dBm
- Hovering Accuracy: When RTK is enabled and working normally:
Vertical: ±0.1 m; Horizontal: ±0.1 m
RTK is not enabled: vertical: ±0.1 m (when the visual positioning is working normally);
±0.5 m (when GNSS positioning works normally)
Level: ±0.3 m (when the visual positioning is working normally);
±1.5 m (when GNSS positioning works normally)
- Image Position Compensation: The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.
GNSS and Gimbal Specifications
- Single Frequency High Sensitivity GNSS GPS+BeiDou+Galileo（Asia）
GPS+GLONASS+Galileo（Other areas）
- Multi-Frequency Multi-System High-Precision RTK GNSS: Frequency points used：
GPS：L1/L2；
GLONASS：L1/L2；
BeiDou：B1/B2；
Galileo：E1/E5
First positioning time:<50 s
Positioning accuracy:
Vertical 1.5 cm + 1 ppm (RMS);
Horizontal 1 cm + 1 ppm (RMS)
1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves
- Gimbal: Three-axis stabilization
- Mechanical Range Tilt: -135° to +45°; Pan: -100° to +100°
- Controllable Rotation Range Tilt: -90° to +30°; Pan：-90° to +90°
- Max Control Speed (Tilt): 300°/s
- Angular Vibration Range: ±0.005°
Remote Controller and Image Transmission Specifications
- Transmission power 2.4~2.4835GHz
FCC/ISED：≤27dBm
SRRC/CE/MIC/RCM：≤20dBm
5.725~5.850GHz
FCC/ISED/SRRC/MIC：≤27dBm
CE/RCM：≤14dBm
- Max Transmission Distance (unobstructed, free of interference) FCC：9 km
CE：5 km
- Real-Tme Image transmission Quality: 720p@30fps / 1080p@30fps
- Maximum Bit Rate of Real-Time Image Transmission: 40Mbps
- Display Screen 7.9” OLED
854（W） * 480（H）Pixel
Directly preview the video without connecting a mobile phone
- Remote Controller Battery: 5000mAh
- Run Time: 3 hours
- Charging Time: 2 hours fast charging
- Working Current/Voltage: [email protected]
Sensing System Specifications
- Sensing System Type: Omnidirectional sensing system
- Forward: Accurate measurement range: 0.5-20 m; Detection range: 0.5-40 m; Effective sensing speed:<15m/s; Viewing angle: Horizontal: 60°, Vertical: 80°
- Backward: Accurate measuring range: 0.5-16 m; Detection range: 0.5-32 m; Effective sensing speed:<12m/s; Viewing angle: Horizontal: 60°, Vertical: 80°
- Upward: Accurate measurement range: 0.5-12 m; Detection range: 0.5-24 m; Effective sensing speed:<6m/s; Viewing angle: Horizontal: 65°, Vertical: 50°
- Downward: Accurate measurement range: 0.5-11 m
Detection range: 0.5-22 m; Effective sensing speed:<6m/s; Viewing angle: Horizontal: 100°, Vertical: 80°
- Left and Right: Accurate measurement range: 0.5-12 m
Detection range: 0.5-24 m; Effective sensing speed:<10m/s; Viewing angle: Horizontal: 65°, Vertical: 50°
- Operating Environment: Forward, Backward and Sides:
Surface with clear pattern and adequate lighting (lux > 15); Upward:
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.); Downward:
Surface with clear pattern and adequate lighting (lux > 15)
Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)
Camera Specifications
- Sensor: 1 inch CMOS; 20 million effective pixels
- Lens FOV: 82° Aperture f/2.8 – f/11
Focus range: 1m to infinity (with auto focus)
- ISO Range: Video: 100 – 6400
Photos：100 – 12800
- Electronic Shutter: 8 – 1/8000 s
- Zoom: 1 – 16 times
- Photo Mode: Single shot; Burst shooting: 3/5 frames; Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Time Lapse:
JPG:2s/5s/7s/10s/20s/30s/60s
DNG:5s/7s/10s/20s/30s/60s
HyperLight: support (under 4K JPEG format)
Long exposure:Max. 8s
HDR imaging: support (under 4K JPEG format)
- Photo Resolution: 5472*3648 (3:2)
5472*3076 (16:9)
3840*2160 (16:9)
- Video Resolution: 6K 5472*3076 p30/p25/p24
4K 3840*2160 p60/p50/p48/p30/p25/p24
2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24
1080P 1920*1080 p120/p60/p50/p48/p30/p25/p24
- Effective Frame: 5472×3648
- Max Bitrate: 120 Mbps
- Photo Format: JPG（default）；DNG
- Video Format: MOV（default）；MP4
- Supported File System: FAT32（≤ 32 GB）；
exFAT（> 32 GB）
- Supported SD Cards: Class4 / Class10 / U3
Capacity：4G / 8G / 16G / 32G / 128G
Battery and Charger Specifications
Battery:
- Capacity: 7100 mAh, 82 Wh
- Voltage: 11.55 V
- Battery Type: LiPo 3S
- Weight: 365 g
- Charging Temperature Range: 5℃ to 45℃
- Storage Temperature and Humidity: -10~30℃，65±20%RH
- Max Charging Power: 93W
- Charging Time: 90 minutes
Charger:- Input: 100-240 V, 50/60 Hz, 1.5A
- Output: 13.2 V ⎓ 5 A
5V⎓3A 9V⎓2A 12V⎓1.5A
- Voltage: 13.2±0.1V
- Rated Power: 66W
|
|
|
 |
|
 |
|
